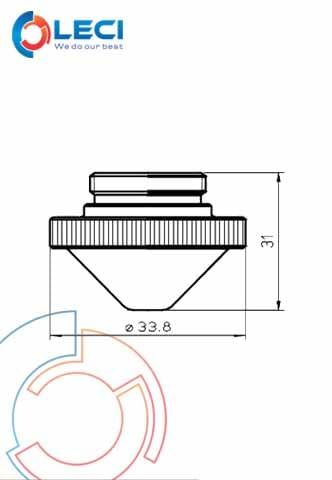

Đầu béc máy LASER NTC

0₫

Mô tả

Centricut part numberReference numberAlternate reference Description
NT401-0001 L454  Nozzle – 1.0 mm
NT401-0002 L455  Nozzle – 1.2 mm
NT401-0003 L456  Nozzle – 1.5 mm
NT401-0004 L457  Nozzle – 2.0 mm
NT401-0005 L458  Nozzle – 2.5 mm
NT401-0006 L459  Nozzle – 3.0 mm
NT382-3738 4R019681 L1090 Nozzle – 1.0 mm
NT382-3737 4R023668 L1091 Nozzle – 1.2 mm
NT382-3904 4R020576 L1092 Nozzle – 1.5 mm
NT382-3739 4R019680 L1093 Nozzle – 2.0 mm
NT382-0025 L1096 Nozzle – 2.5 mm 1
NT382-3905 4R019770 L1094 Nozzle – 3.0 mm
NT382-0040 L1095 Nozzle – 4.0 mm 1
NT426-0515 4R018705-001  Nozzle – 1.5 mm ceramic standard
NT426-0520 4R018705-002  Nozzle – 2.0 mm ceramic standard
NT426-3962 4R003962-001  Cap – nozzle (standard)
NT426-6515 4R008865-002  Nozzle – 1.5 mm ceramic (small)
NT426-6520 4R008865-001  Nozzle – 2.0 mm ceramic (small)
NT426-8866 4R008866-001  Cap – nozzle (small)
NT426-8415 4R018452-001  Flange – 0.15" (new style)
NT426-8430 4R18452-002  Flange – 0.30" (new style)
NT426-8450 4R032035-001  Flange – 0.50" (new style)
NT426-9711 Flange – 0.10" (old style)  1
NT426-4446 4R004446-001  Flange – 0.15" (old style)
NT426-6511 4R006511-001  Flange – 0.30" (old style)
NT426-0487 (not shown) Flange – 0.50 (2D)  1
NT426-2632 (not shown) 3R002632-G03  Nozzle holder – ceramic (old style)
NT426-6928 (not shown) 3R016928-G01  Nozzle holder – ceramic (new style)
NT426-7758 4R037758-001  Nozzle base
NT426-0001 (not shown) N-G O-RINGS  O-rings for nozzle holders
NT426-3765 (not shown) 4R003765-001  Nozzle nut
NT426-3540 4R003540-001  Stylus
NT426-2720 4R012720-001  Stylus adap
NT426-1682 (not shown) 4R029911-001  Sensor cable – 216 mm (8.5")
NT426-8677 (not shown) 4R028677-001  Sensor cable – armored 508 mm (20")
NT426-4991 (not shown) 3-0104991  Sensor cable – 482 mm (19")
NT426-7492 (not shown) 3-0117492  Sensor cable – 482 mm (19")
