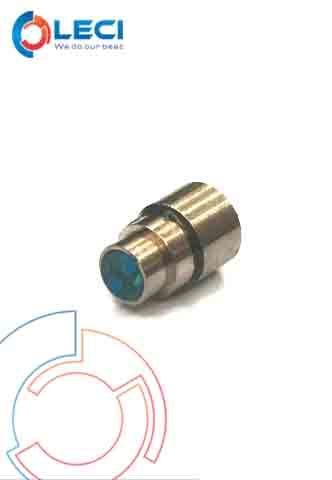

GDL Laser

0₫

Describe

Microchip laser cavity technoloy is one kind of mini 532nm lasers with internal photodiode to realize close power control loop. The laser is specially designed for OEM applications, which require compact size and high reliability performance. Introduced into market since 2003, the GDL laser family has been improved with various characteristics to meet with requirements of diversified applications.

Part No.Output PowerPower StabilityOperating Temp.RMS NoiseLinear Polarization
Standard GDL
GDL-6005HS5mW<±5%40°C~55°CNAOptional
GDL-701010mW<±5%20°C~30°CNAOptional
GDL-702020mW<±5%20°C~30°CNAOptional
GDL-705050mW<±5%20°C~30°CNAOptional
Low Noise GDL
GDL-6005L5mW<±2%20°C~35°C<0.5%>100:1
GDL-7-0010-LN0-00-A10mW<±5%20°C~35°C<0.5%>100:1
GDL-7020L20mW<±2%20°C~35°C<0.5%>100:1
GDL-7050L50mW<±2%20°C~35°C<0.5%>100:1
GDL-8-0100-LNH-00-B100mW<±5%20°C~40°C<0.5%>100:1
GDL-8-0150-LNH-00-B150mW<±5%20°C~40°C<0.5%>100:1
Wide Temperature Operating GDL-A Series
GDL-A-0004-WTB-004mW<±5%10°C~40°CNANA
GDL-A-0005-WTB-005mW<±5%10°C~40°CNANA
GDL-A-0010-WTB-BL10mW<±5%10°C~40°CNANA
GDL-A-0010-WTA-ZL10mW<±5%5°C~45°CNANA
GDL-A-0020-WTA-0020mW<±5%5°C~45°CNANA
GDL-A-0020-WTB-0020mW<±5%10°C~40°CNANA
Wide Temperature Operating GDL-8000 Series
GDL-8-0050-WTB-PL-A 50mW<±5%15°C~40°CNA>100:1
GDL-8-0100-00H-00-B100mW<±5%20°C~40°CNANA
GDL-8-0200-00H-00-B200mW<±5%20°C~40°CNANA
GDL-8-0300-00H-00-B300mW<±5%20°C~40°CNANA
GDL-8-0300-WTA-00-A300mW<±5%5°C~45°CNA>100:1
