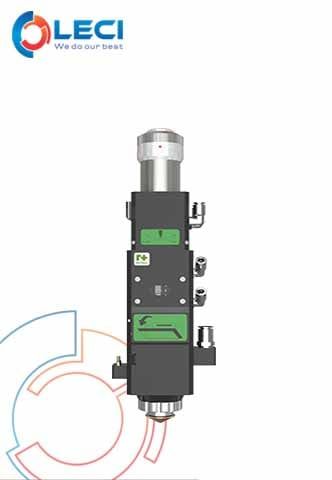

BT240S Raytools Cutting Head

0₫

Describe

Power Rating

≤3.3KW

Clear Aperture

28mm

Collimator Focal length

100mm

Focusing Focal length

125mm/155mm/200mm

Cover glasses

φ24.9mm*1.5mm(CM)

φ27.9mm*4.1mm(FM)

Assist Gas Pressure

≤25bar

Weight

~3.5kg

Height Sensor(EtherCAT or ±10V optional)

Distance Range(1mm Recommended)

0.3-10mm

Calibration

Auto Calibrating/Manual Calibrating

Response Time

<1ms

Temperature Stability

In the range of 0 to 45℃, the temperature stability is in the range of ±5%

Power Requirement

24V

Output (linear or optimization curve signal)

0~10V/+-10V Analog
